Temperature-Humidity Sensor
✅ Waterdicht en makkelijk schoon te maken
✅ Langdurige batterijduur gegarandeerd
🛍️ Ontdek de juiste temperatuur

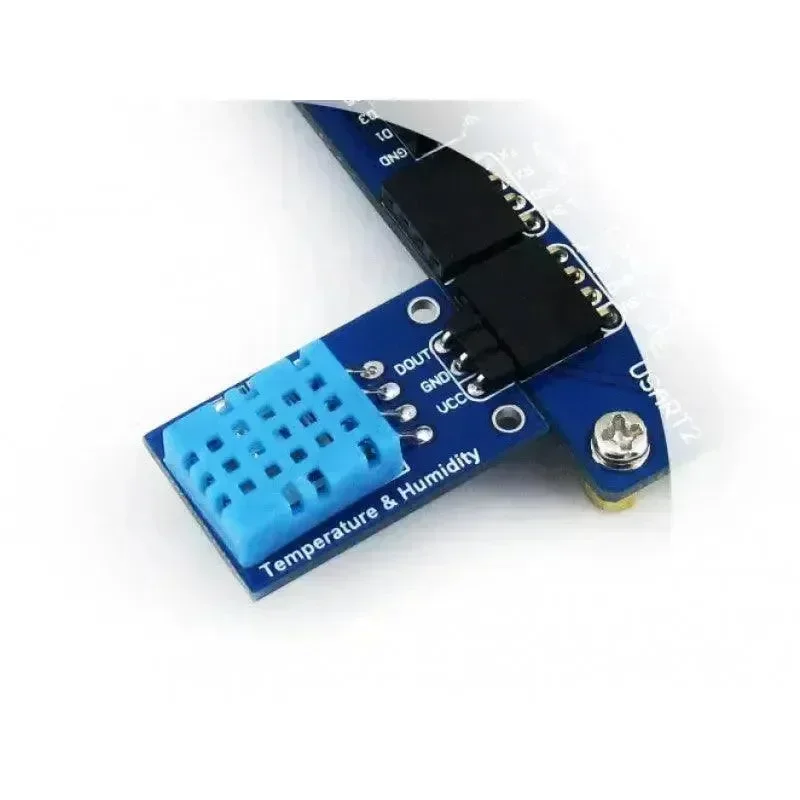

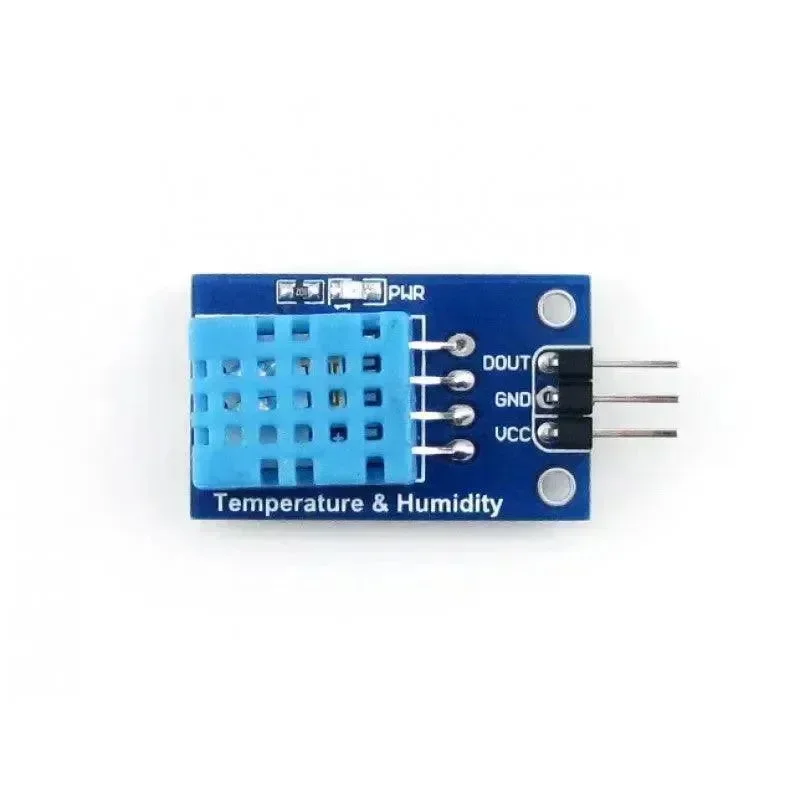

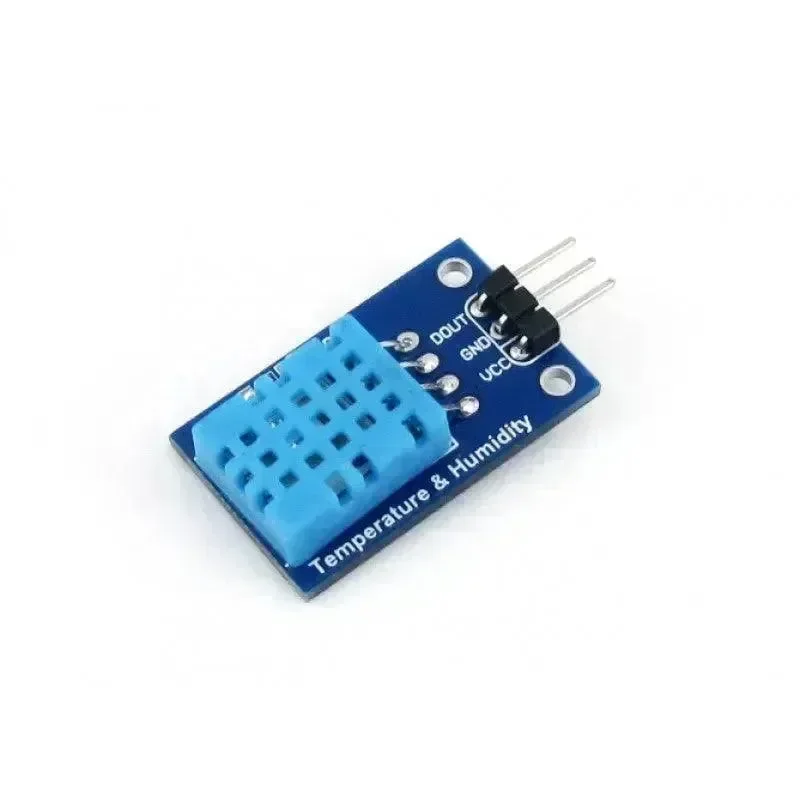

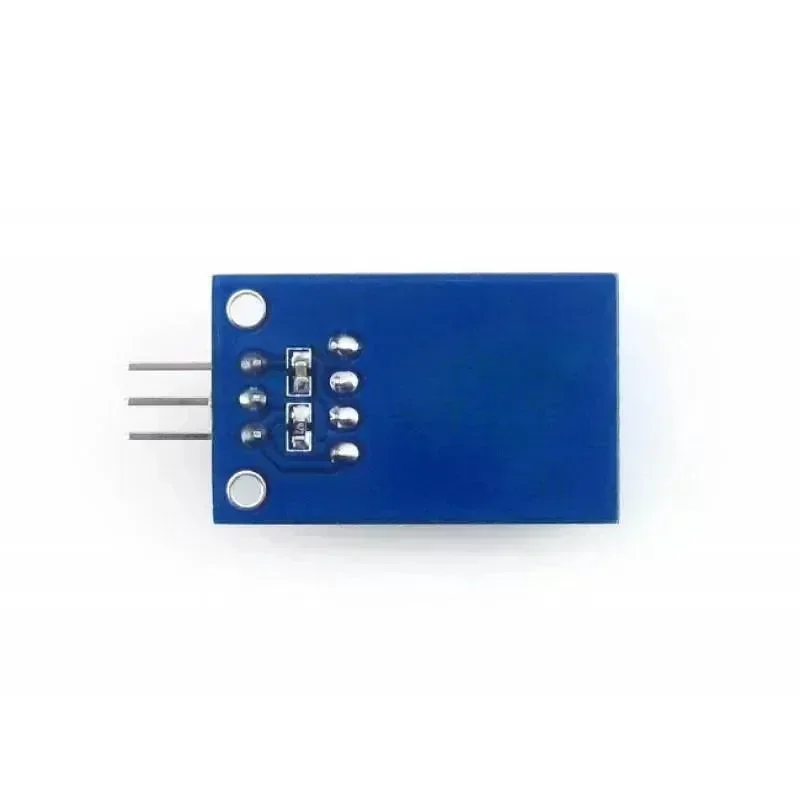

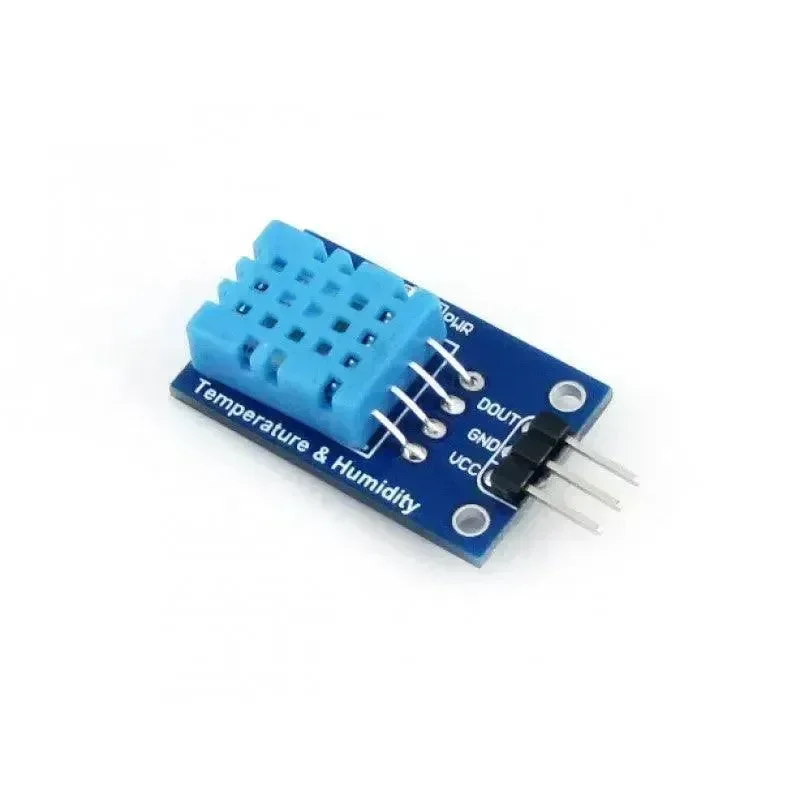

This is a calibrated digital temperature and humidity module with onboard sensor DHT11. It can be used for detecting ambient temperature and humidity, through the gebruikelijk single-wire interface.
Specifications
- Temperature
- Resolution : 1°C
- Accuracy : ±2℃
- Measuring range : 0°C ~ 50°C
- Humidity
- Resolution : 1%RH
- Accuracy : ±5%RH (0~50°C)
- Measuring range : 20%RH ~ 90%RH (25°C)
- Operating voltage : 3.3V ~ 5.5 V
- Recommended storage condition
- Temperature : 10°C ~40°C
- Humidity : 60%RH or below
Applications
- Weather station
- Humidity controller
- Test & detection device
How to Use
In the case of working with a MCU:
- VCC ↔ 3.3V ~ 5.5V
- GND ↔ GND
- DOUT ↔ MCU.IO
Dimension
<img src="https://cdn.shopify.com/s/files/1/0621/0050/4774/files/Temperature-Humidity-
