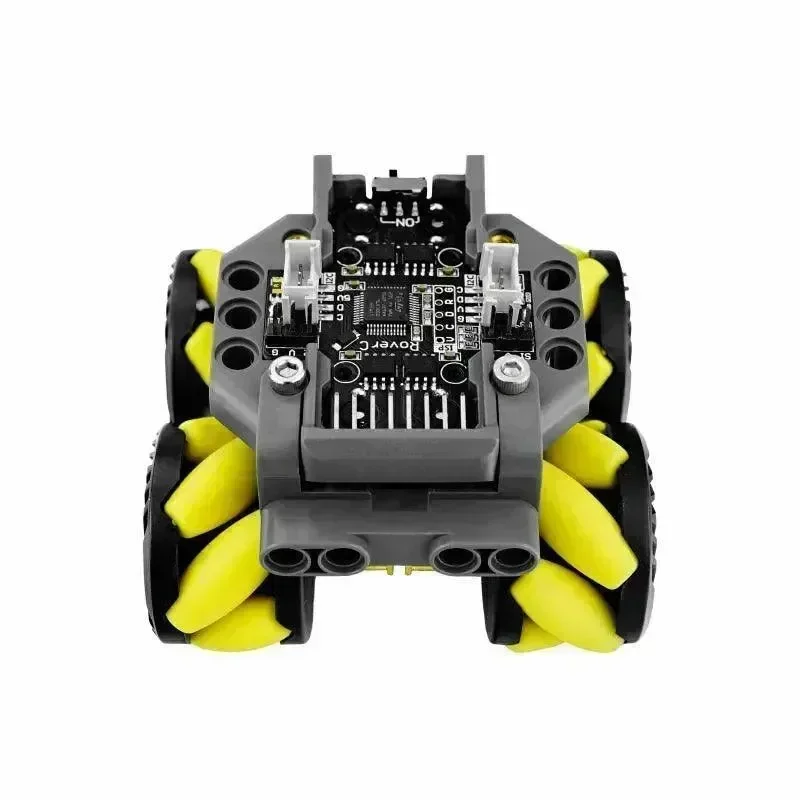

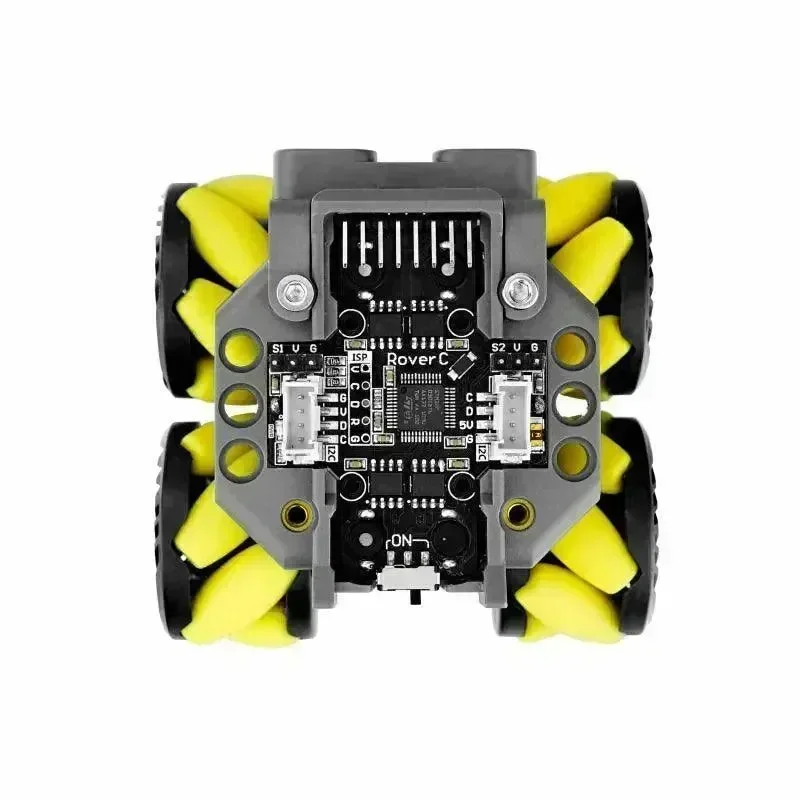

RoverC-Pro is a programmable Mecanum wheel omnidirectional mobile robot base
✅ Veilig en gebruiksvriendelijk ontwerp
✅ Hoogwaardige duurzame materialen
🛍️ Verwarm uw buitenruimte nu
RoverC-Pro is a programmable Mecanum wheel omnidirectional mobile robot base. Compatible with M5StickC/M5StickC PLUS, it can be initialized by just inserting M5StickC/M5StickC PLUS. The main control chip is STM32F030C6T6, and it incorporates four N20 worm gear motors to drive the wheels directly by the motor driver.

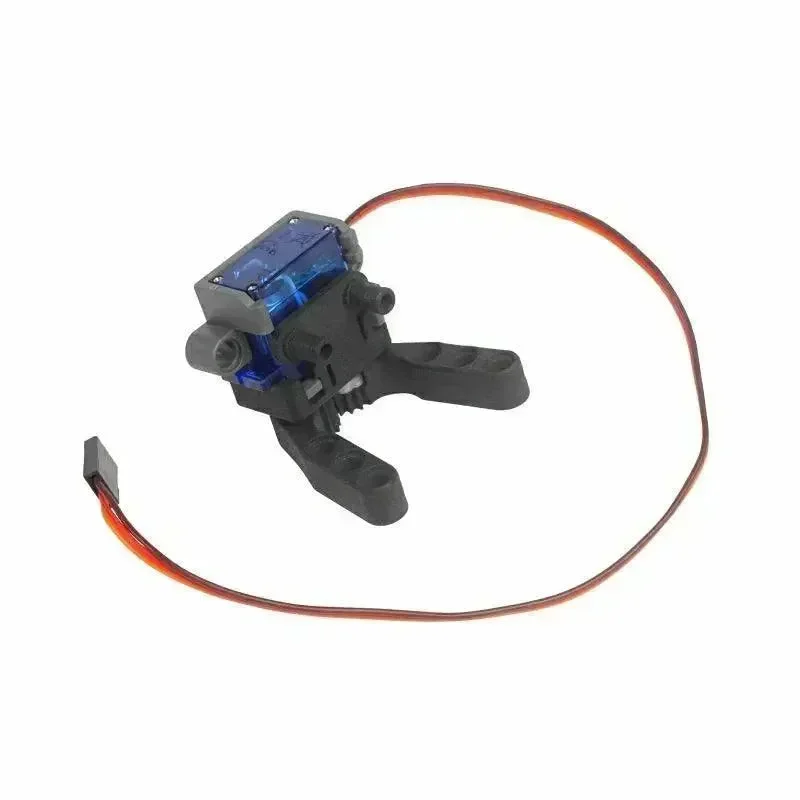

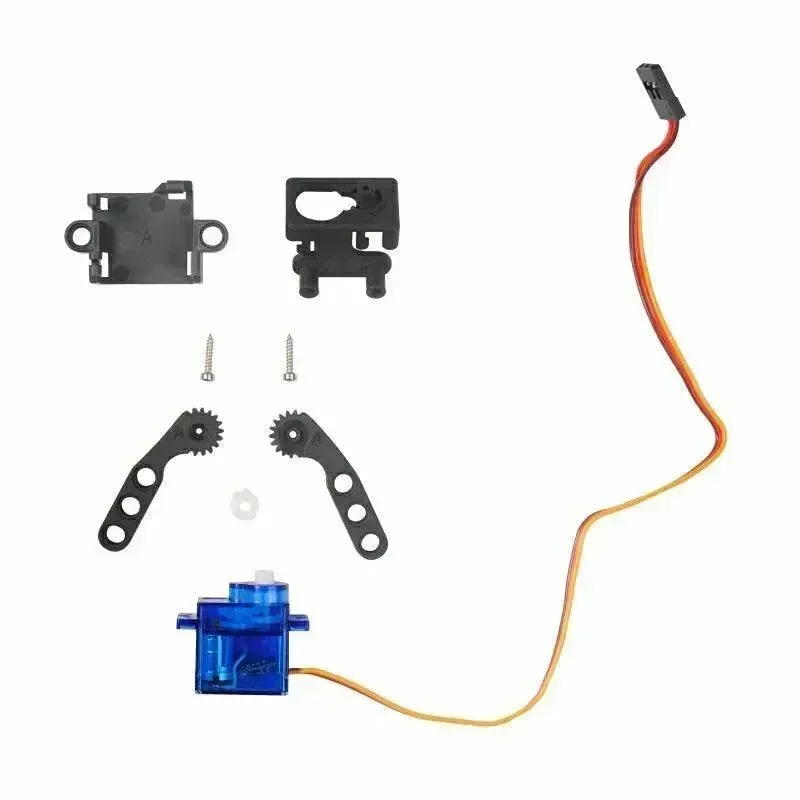

The PRO version provides a gripping mechanism controlled by a servo for gripping objects. The base provides two dedicated servo control drivers. In addition, it also provides two Grove-compatible I2C connectors to facilitate the expansion of other modules. The base is geschikt voor with Lego and can be expanded structurally. There is a 16340 (700mAh) battery on the back, from which the battery can be replaced. It can be recharged through M5StickC/M5StickC PLUS. The power of the base is controlled by an independent switch.
Product Features
- I2C Address 0x38
- Remote Control
- Gripping mechanism
- Program
